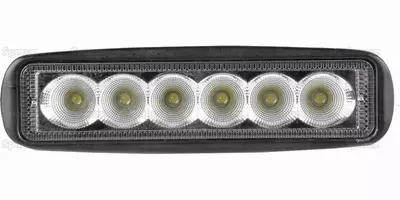

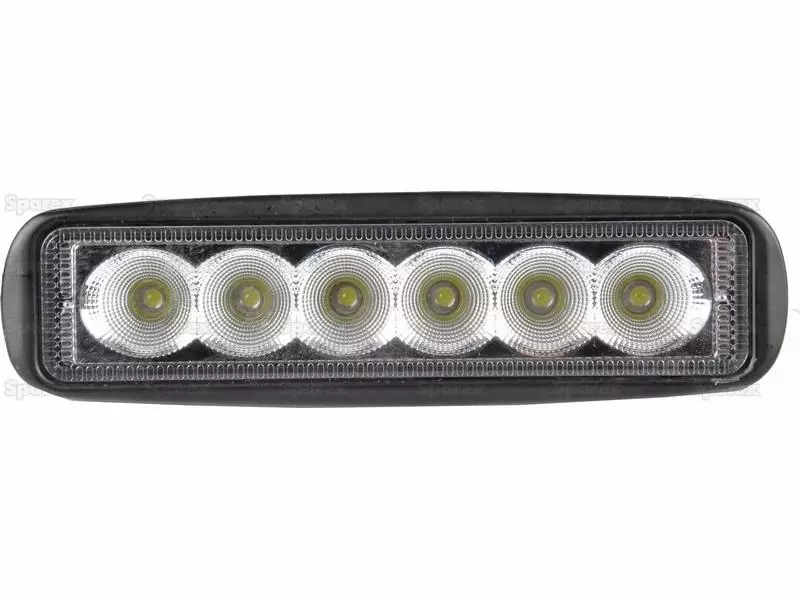

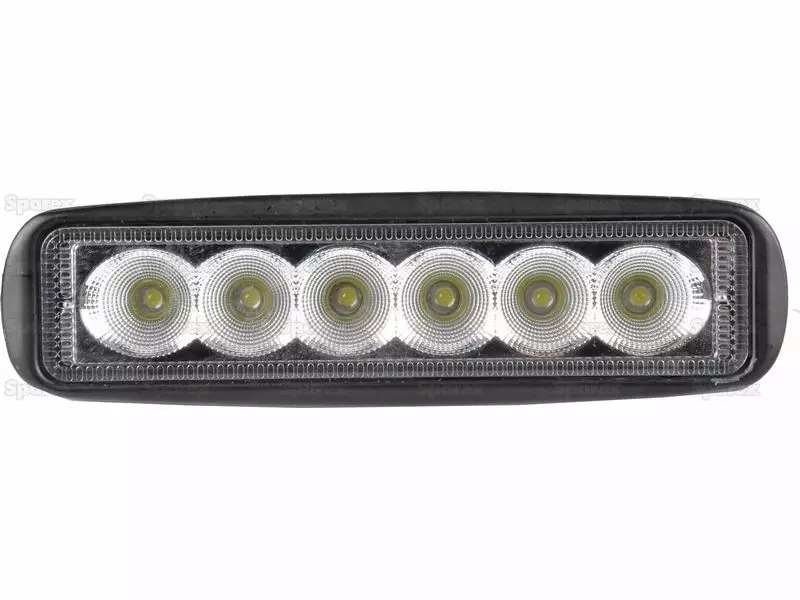

LED Flat Work Light Bar 165mm 2500 Lumens Raw 10-30V

LED Flat Work Light Bar 165mm 2500 Lumens Raw 10-30V

SP-155420

Description
ECE Rating: Reg 10
CE Approved: Yes
IP Rating: IP67
Connection Type: Wired

Beam Angle

60°

Brand

Sparex

Cable length (mm)

400

CE Approved

Yes

Connection Type

Wired

ECE Rating

Reg 10

Effective Lumens

2100

Fixing:

1 Bolt

Function

Flood Beam

Housing Material

Aluminium

Interference EMC EMI CISPR 25

Class 3

IP Rating

IP67

Lens Colour

Clear

Lens Material

Plastic Safety Glass

Light source

LED

Lumens Raw

2500

Lux Value

1600

Number of LEDs:

6 LEDs

Overall height (mm)

47.5

Overall length (mm)

165

Overall width (mm)

40

Power Consumption @ 12V:

0.75Amps

Power Consumption @ 24V:

0.40Amps

RoHS Approved

Yes

SAE Approved

No

Shape

Square

Tariff Code

8539100090

Type

Flat

Volts

10-30V

Watts

30W

With Noise Suppression

Yes

Working Temperature °C

-30°C to 50°C
