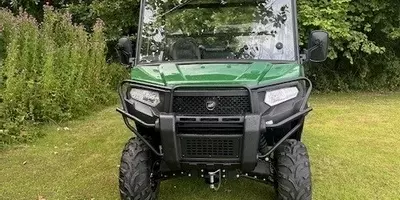

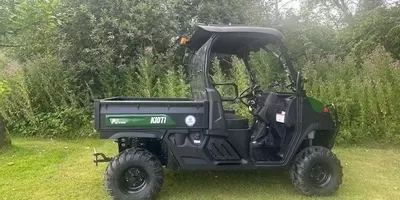

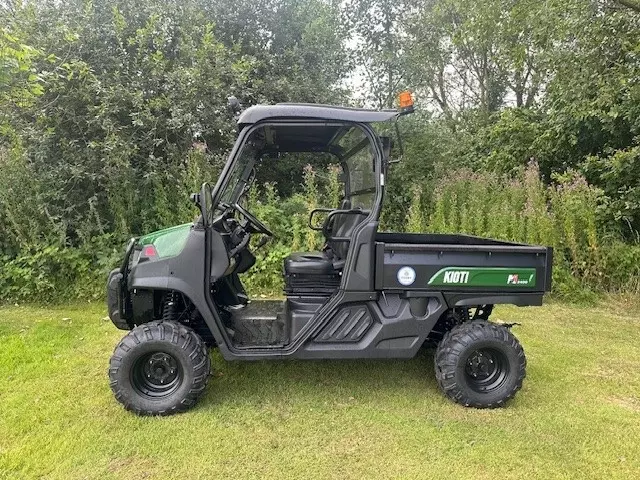

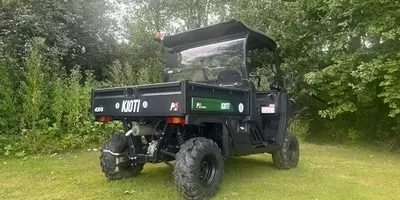

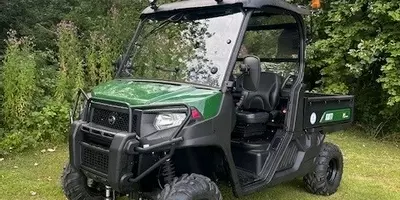

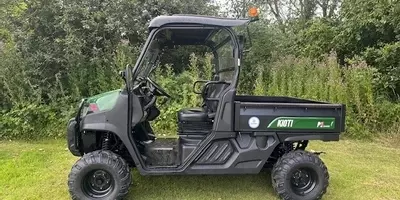

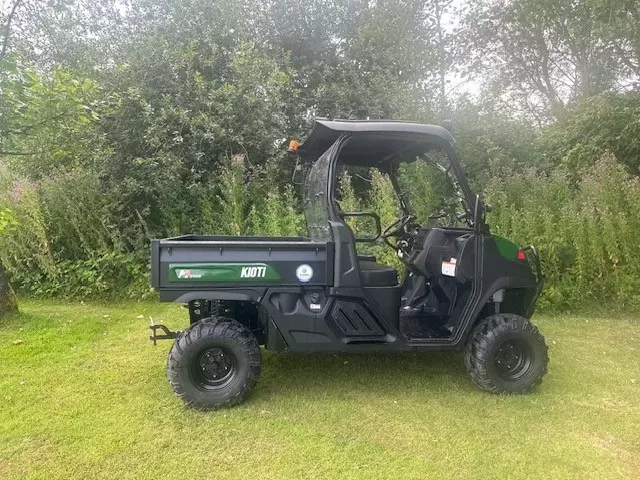

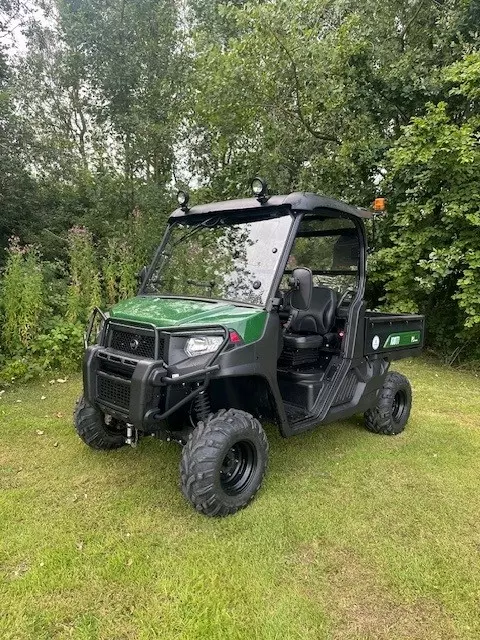

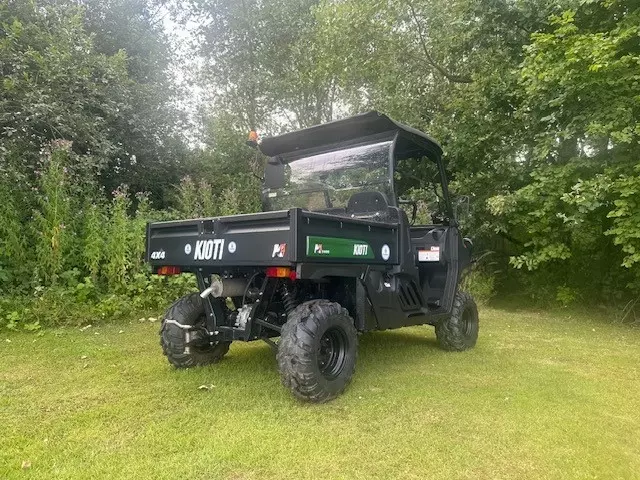

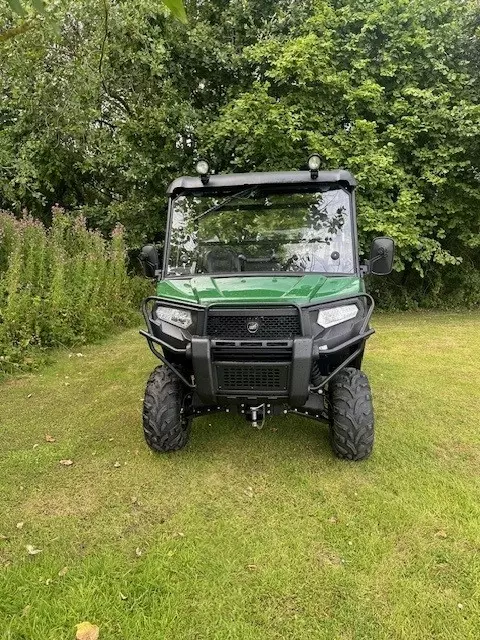

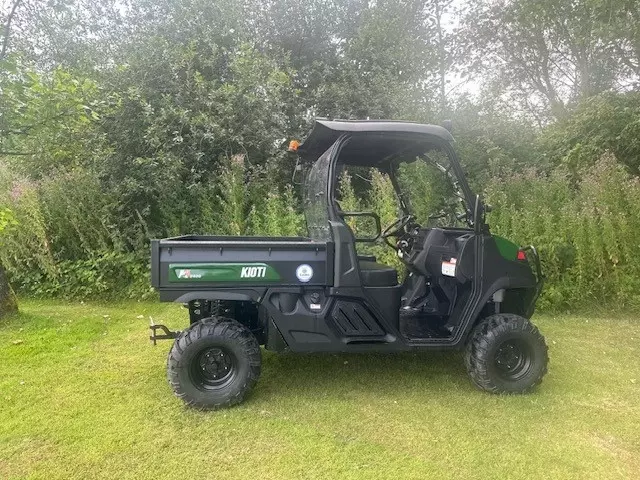

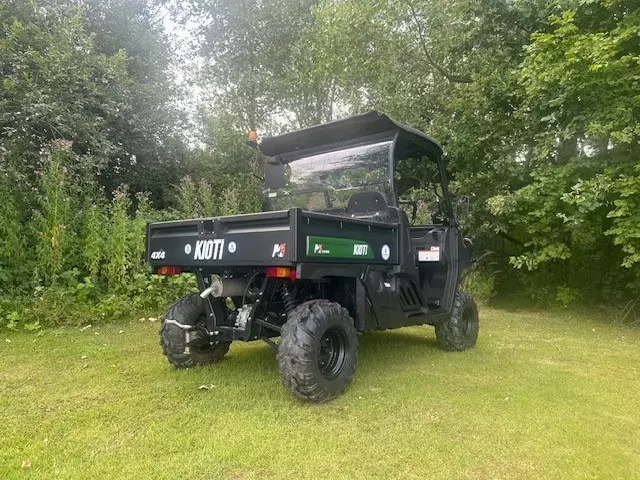

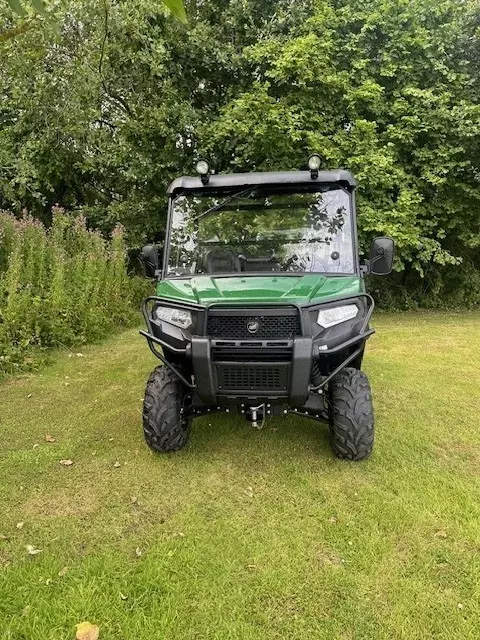

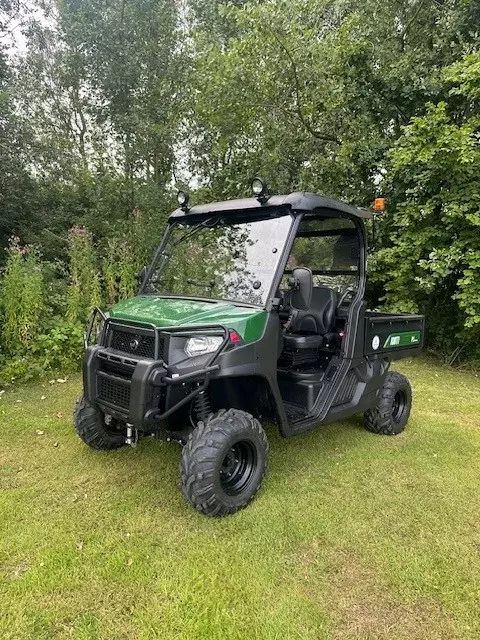

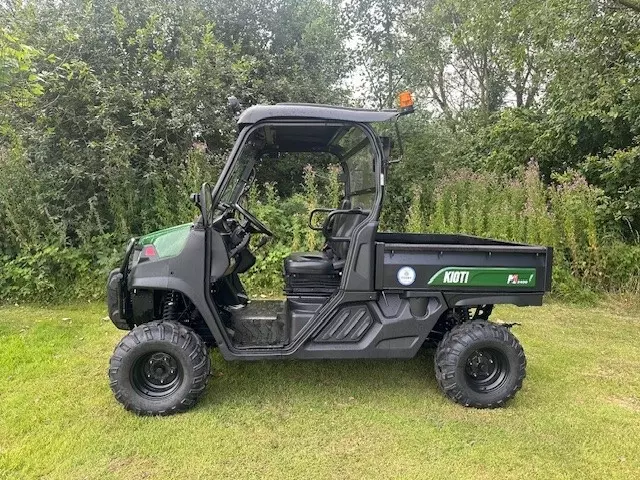

The new KIOTI K9 UTV. A Landowners Best Friend. Fully-Featured, Tough, and Reliable Companion. The K9 offers contemporary styling, enhanced ergonomics and an abundance of storage. With a 24 horsepower, 3 cylinder, in-line vertical, water-cooled Daedong diesel engine with a ground speed up to 31 mph, landowners will rejoice. *Payload capacity includes passengers.
| Engine Model |
3C100LFU-U2 |
| Engine Type |
4-Cycle Diesel, 3 Cyl., In-line Vertical, Water-Cooled |
| Engine Gross |
24 hp (17.89 kW) |
| Displacement |
61.45 cu. in. (1,007 cc) |
| Rated Revolution |
3,000 rpm |
| Fuel Tank Capacity |
9.7 gal. (37 ℓ) |
Drive Train
| Type |
Belt CVT |
| Gear Range |
Low, High, Neutral, Reverse |
| Ground Speed |
0-31 mph (0-50 km/h) |
| Brake |
Front/Rear Hydraulic Disc |

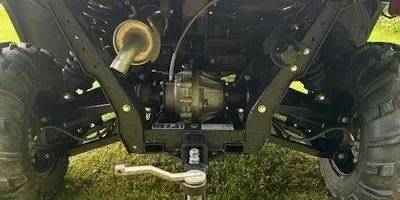

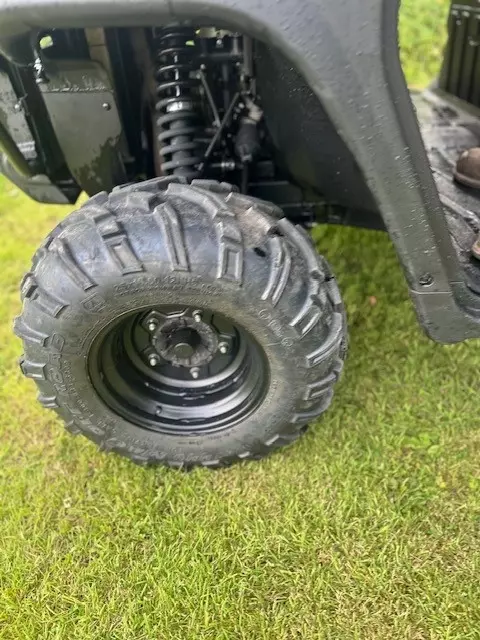

Suspension
| Front Suspension |
Independent, Double A-Arm (Wishbone Type) |
| Rear Suspension |
Independent, Double A-Arm (Wishbone Type) |
Steering
Dimensions
| Length |
119.8 in. (3,045 mm) |
| Width |
62.5 in. (1,590 mm) |
| Height |
76.7 in. (1,950 mm) |
| Max Front Wheel Tread |
49.7 in. (1,262 mm) |
| Max Rear Wheel Tread |
49.8 in. (1,264 mm) |
| Wheelbase |
85.8 in. (2,180 mm) |
| Weight |
2,050 lbs. (930 kg) |
| Ground Clearance |
12.5 in. (318 mm) |
| Towing Capacity |
1,300 lbs. (590 kg) |
| Payload Capacity |
1,598 lbs. (725 kg) |
| Turning Radius |
14.1 ft. (4.3 m) |

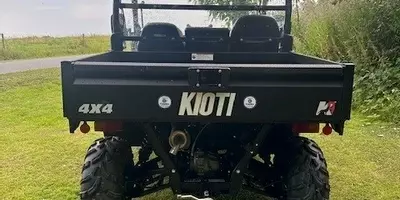

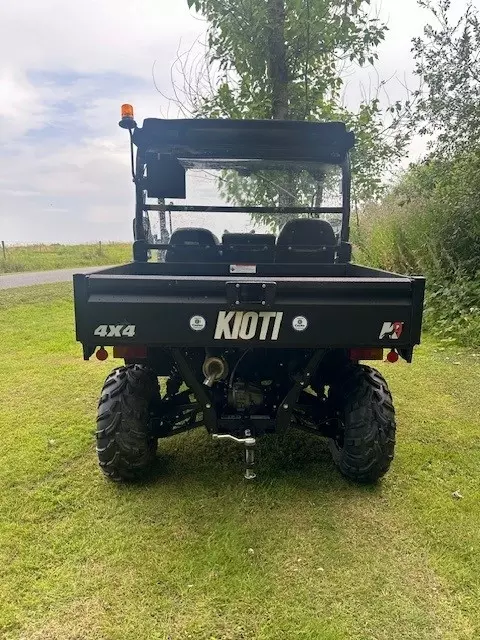

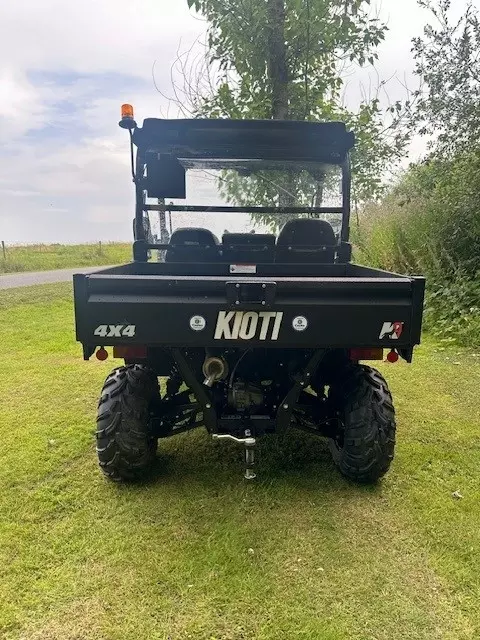

Cargo Bed
| Length x Width x Depth |
43.7 x 58.2 x 11.5 in. (1,110 x 1,480 x 293 mm) |
| Bed Capacity |
1,102 lbs. (500 kg) |
